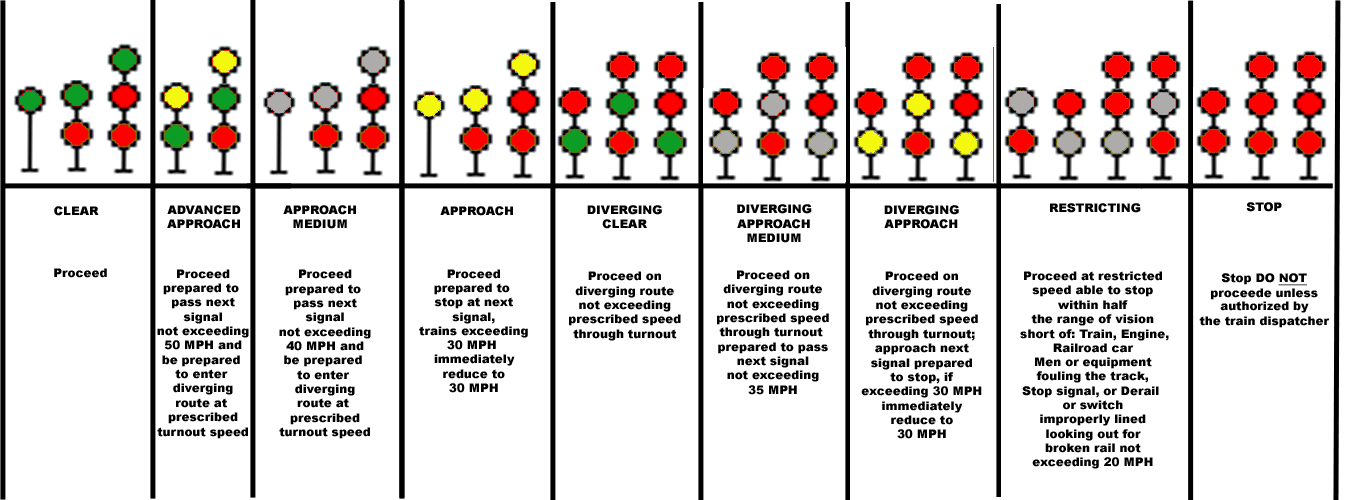

Redlake Junction Railroad Signal Aspects


East Diehl City Crossover Signal Scenario

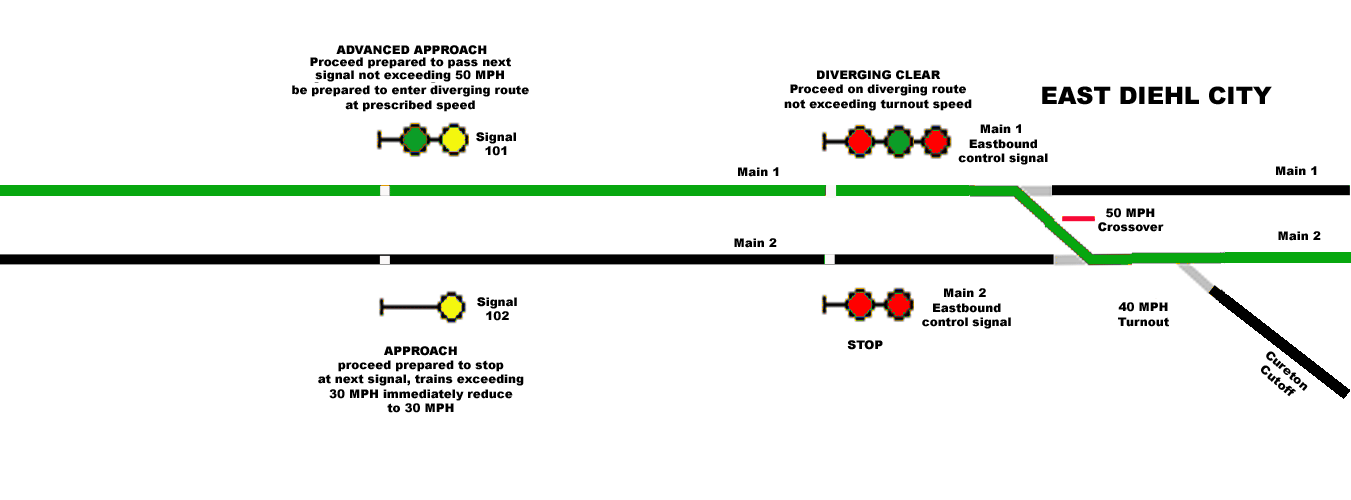

East Diehl City is the most complicated signaling on The Redlake Junction Railroad. Below are the signal indications for a train taking the crossover from Main 1 to Main 2. The trains first signal aspect is ADVANCED APPROACH. This tells the engineer that he will be taking the diverging route at the next signal. The turnouts for the crossover at East Diehl City are good for a speed of 50 MPH. The speed restriction for the turnout only applies when it is lined for the diverging route or curved part of the turnout. The next signal the engineer sees is the triple headed signal displaying DIVERGING CLEAR. The top head of this signal is red because we will not go to Main 1. The middle head is green because we are going to Main 2. The bottom head is red because we are not going to the Cureton Cutoff.


East Diehl City Cureton Cutoff Signal Scenario

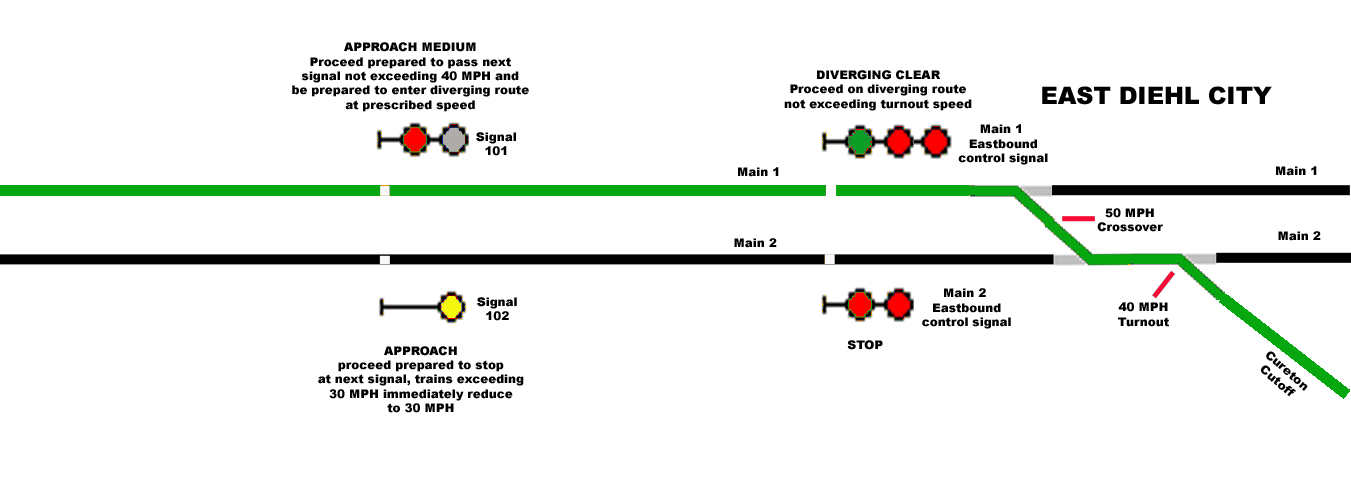

Below are the signal indications for a train taking the Cureton Cutoff from Main 1. The trains first signal aspect is APPROACH MEDIUM. This tells the engineer that he will be taking the diverging route at the next signal. This time the turnout for the Cureton Cutoff is only good for a speed of 40 MPH. Again just like above the speed restriction for the turnout only applies when it is lined for the diverging route or curved part of the turnout. The next signal the engineer sees is the triple headed signal displaying DIVERGING CLEAR. The top head of this signal is red because we will not go to Main 1. The middle head is Red because we are Not going to Main 2. The bottom head is green because we are going to the Cureton Cutoff.


East Diehl City Main 1 Signal Scenario

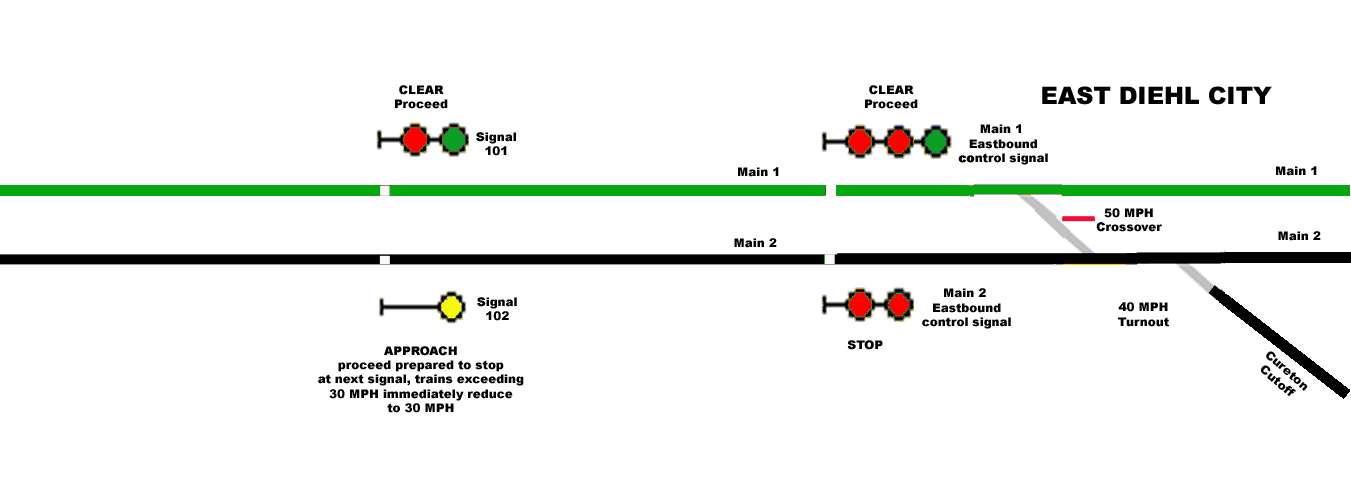

Below are the signal indications for a train running down main 1 The trains first signal aspect is CLEAR. This tells the engineer that he will be Staying on Main 1 through East Diehl City. The next signal the engineer sees is the triple headed signal displaying CLEAR. The top head of this signal is Green because we are staying on Main 1. The middle head is Red because we are Not going to Main 2. The bottom head is Red because we are Not going on the Cureton Cutoff.
